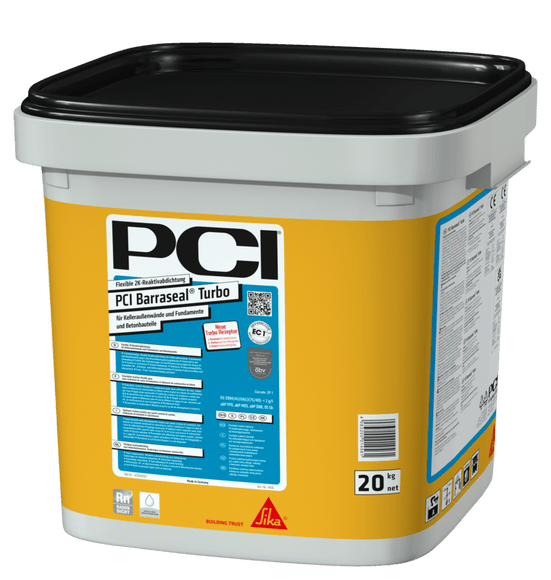

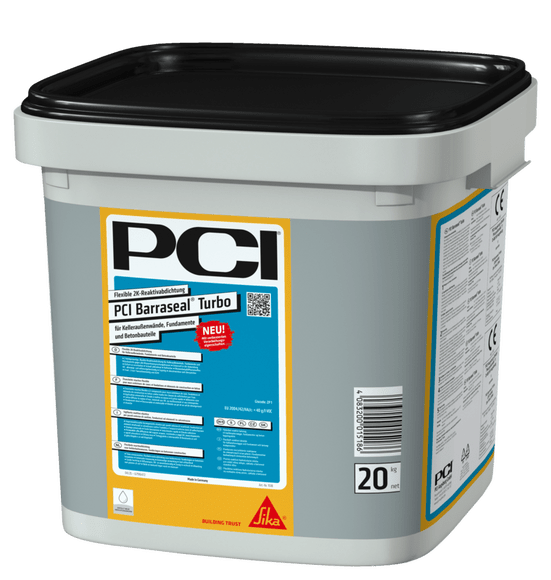

PCI Barraseal® Turbo
Flexible, 2-component reactive waterproofing membrane
for external basement walls, foundations and concrete elements

Areas of application
- For interior and exterior use, walls and floors.
- For waterproofing basement walls, foundations and concrete structures to DIN 18533 (W1-E).
- As waterproofing layer against pressing water in accordance with the test principles for mineral waterproofing slurry, flexible polymer-modified thick coating and transition to concrete components with high water penetration resistance.
- As a damp proof course under walls to DIN 18533 (W4-E).
- For waterproofing transitions to water-impermeable components and lost formwork.
- As a flexible waterproofing layer to DIN 18533 (W4-E).
- As waterproofing of a reservoir to DIN 18535, e.g. rainwater tanks.
- For bonding protection boards, drain boards and insulation boards.
- For crack-bridging waterproofing of old damaged basement waterproofing layers.
Product features
- Two-component, flexible reactive waterproofing membrane for basement walls, foundations and concrete elements against soil moisture, standing seepage water and pressing water.
- For multiple use, as bonding slurry, waterproofing of surfaces, foundation walls, horizontal surfaces, for bonding drainage boards and insulation boards.
- 2 mm crack bridging according to test principles for flexible polymer-modified thick coating, crack class R3.
- Crack bridging ≥4 mm at a dry layer thickness of 3 mm.
- Easy to apply by spray gun, roller, brush or trowel.
- Adjustable consistency for greater ease of application when spraying, rolling or brushing.
- Fast setting, for work under time pressure.
- Curing control, ready for next layer when the color has changed.
- Reliable bond, for use on mineral substrates and bituminous substrates.
- Water vapor permeable, resistant to UV, aging and weather conditions.
- Radon tight, for a high level of health protection.
- Efficient, high dry layer thickness of approx. 90% of the amount of material applied.
- Can be painted over and plastered over.
- Resistant to frost, frost/de-icing salt and tight: protects against harmful salts such as chloride.
Forms of delivery:
20-kg-pail
Consumption calculator
Your Result
Quantity Required * approx
kg
corresponds
20-kg-pail
pieces
*
This consumption calculation included in the program contains approximate values based on experiences which might considerably vary upwards and also downwards depending on the structure of substrate, type of tiles, different profiles on the reverse sides, type of tiling tools, work method a.o. Calculations are therefore not allowed to be based on these values. In case of larger projects we recommend to assess the consumption by making a trial surface. Applications in the combined method (buttering-floating) increase the consumption by approx. 20 to 25%. In case of powder products the data relate to the consumption of dry powder for easier calculation of the material requirement.
YOUR DIRECT CONTACT
Downloads
Technical data sheet

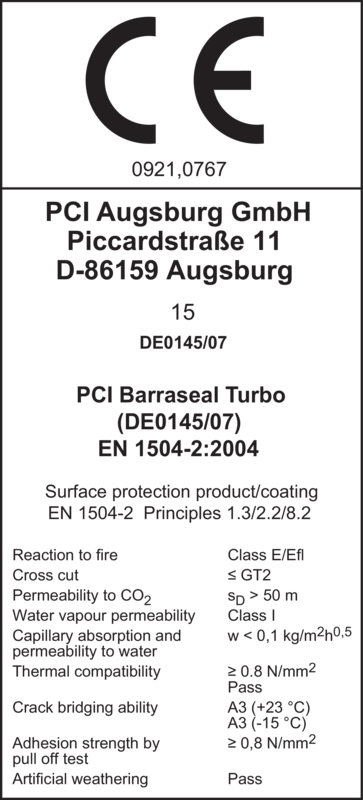

Declaration of performance EN 1504-2
Sustainability data sheet
Classification report EN 13501-1 (E)
Combined with product:
PCI Barraseal® Turbo
Classification report EN 13501-1 (Efl)
Combined with product:
PCI Barraseal® Turbo
Licensing GEV EMICODE (EC1 PLUS)
Combined with product:
PCI Barraseal® Turbo
